• Kit weight including all the hardware i.e. fuel pump mount plates brackets lights = 15.6 kg
• Kits manufactured from a matrix of composite materials such as carbon fibre kevlar and glass fibre
• 2 x Supplied tanks are 7L per side and constructed from carbon fibre/kevlar
• Fuel pump is relocated from rear standard tank to the RH front tank. All tanks are interlinked and can be individually isolated
• Ignition is in its standard position so the key lock still functions as original,original exhaust routing still maintained

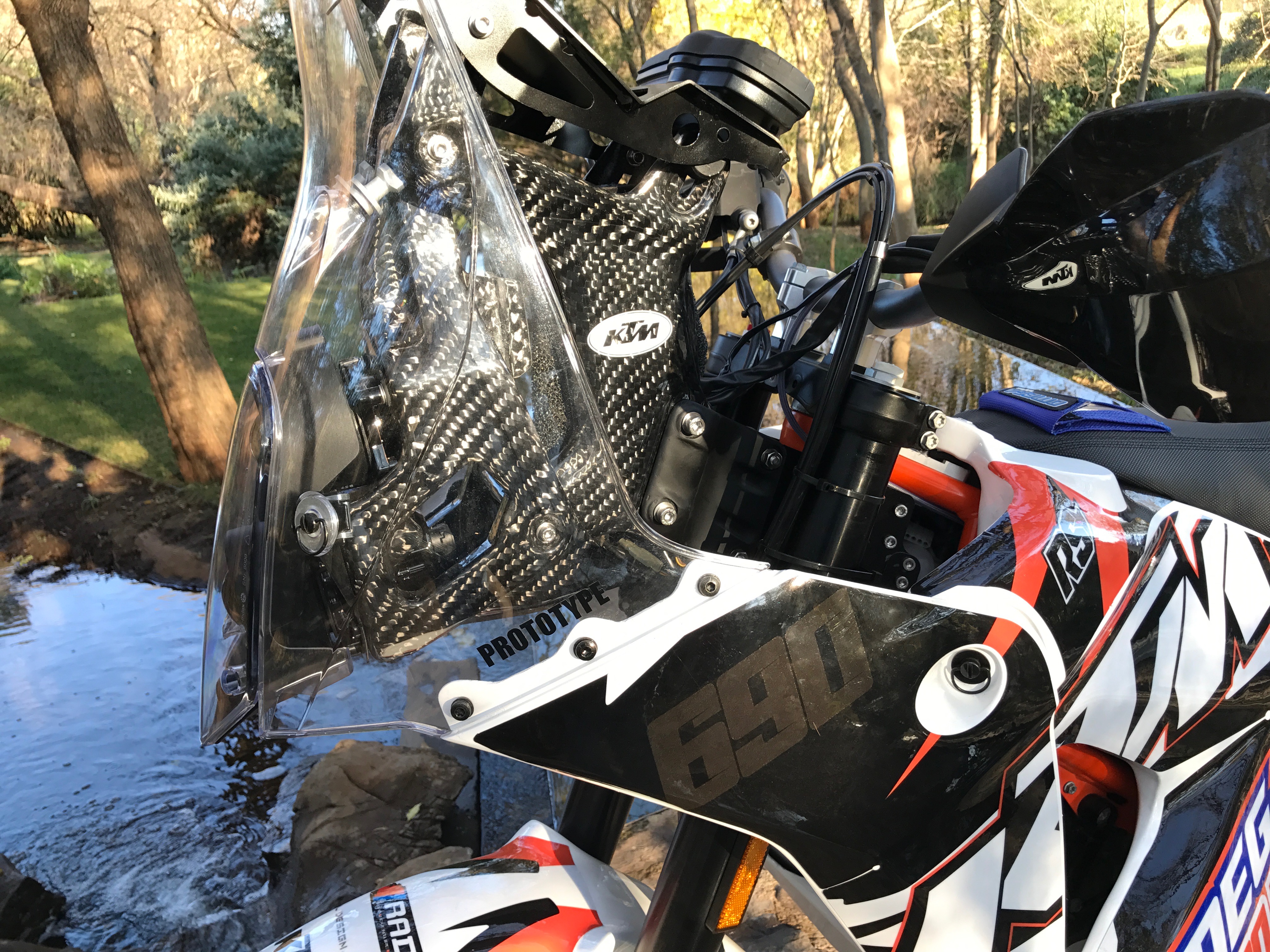

• Front tower is manufactured from Carbon fibre and houses the high and low beam halogen lights
• Tower is painted Satin Black and Road book Holder is included.
• Lower Bash-plate is included and also constructed from the same materials
• Base kit components all manufactured from Carbon fibre/kevlar but have been painted,should some of these components be specified by customer to have the carbon fibre weave visible on the finish then there are additional costs on these components.
• Both the standard high front fender or the lower fender can be used, Lower Fender is included.
• All connectors supplied are KTM and kit includes all the hardware for installation off electrical items and fuel systems.
• Kit parts are painted in single colour of customers choice,2K automotive paint used
• New Seat is supplied as parts of the kit in black/orange or black/blue
• Clear screen is included in the kit
• If the kit is installed on the bike there is an installation cost
• For export customers Base kit is $6956 US exl freight,tax and duties we can arrange freight and will quote according to destination,payment via bank transfer or paypal,additional fees apply for paypal payments

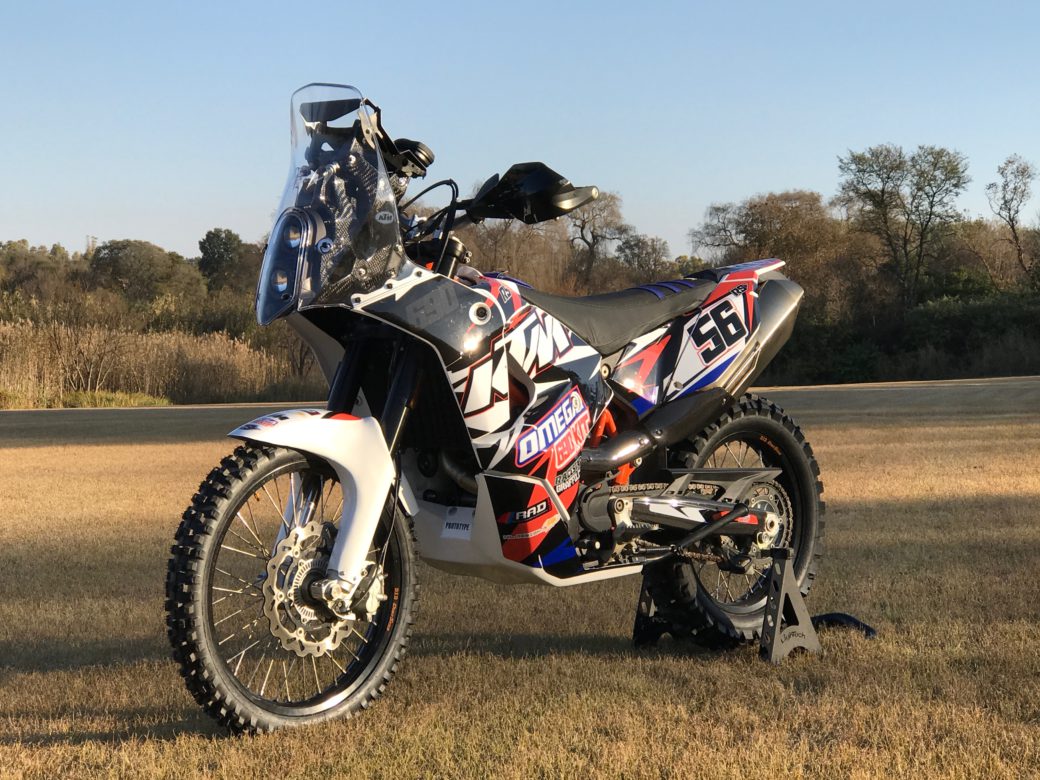

KTM (gen 3) 690
Next generation goodness...
• Not Included in the kit are the decals, can be individually designed and supplied @ $330 US
• Not Included in the kit are the carbon fibre engine protectors, swing-arm guards and exhaust guards $420 US
• Not Included are the Cycra CRM Pro bend hand guards.
• Not Included Steering damper.
• Not Included Akrapovic pipe,or wider footpegs
